|AC220V 1P / AC380V 3P 50/60Hz
|After-sales Service Provided:
|Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,No Overseas Service Provided,Free Spare Parts
SKP-4 K Cup Filling And Sealing Machine,
SKP-4 capsule Filling And Sealing Machine,
K Cup Filling And Sealing Machine
SKP-4 High Speed Automatic 4 Lanes K-cup
Tea Powder Filling and Sealing Machine
Sunyi Machinery is the China top 1 professional manufacturer of the compatible coffee capsules filling sealing machine for over 10 years. In China, we Sunyi Machinery is the representative of the top advanced technology of such coffee capsules filling sealing packaging machinery.
We can do almost all the popular coffee capsules in the market, such as compatible Nespresso, K-cup, K-shot, Lavazza Blue, Lavazza A Modo Mio, Dolce Gusto, etc...
This 4 lanes K-cup Tea Powder filling sealing machine is Sunyi the latest hot selling new machine in 2020. It's composed with fully stainless steel machine structure and food grade stainless steel all material contact parts. With world popular electronic pneumatic compoments, such as Schneider, Siemens, Omron, SMC, AirTac, etc.. With top advanced technology in China, this machine speed can be at 9,000~11,000caps per hour under stable working condition. This machine is a medium capacity machine. It's suitable for a developing factory to make a bigger capacity market needs. We can make the max. filling packing speed being upto 20,000cups per hour.
Apart from the k-cup tea powder filling sealing machine, we Sunyi Machinery can also make a complete coffee capsule filling sealing and packaging line, such as the box cartoning machine, labeling machine, printing machine, etc..
For any further more questions, please don't hesitate to let me know.
Machine Features of the 4 Lanes K-cup Tea Powder Filling Sealing Machine:
1. With automatic vertical k-cup denester loading system or with horizontal k-cup feeding system that will be using servo driving system or swing cylinder system.
2. With photoelectric sensor detection function, if no cups, then the following stations will not take action.
3. With optional UV sterilization lamp to make the production meet FDA standard.
4. With optional Anti-static device to remove statics that coming with the fresh coffee powder.
5. With automatic coffee powder feeding system, such as vacuum feeding system or screw auger feeding system at customer's choice.
6. With Nitrogen flushing function from the capsule loading staiton to the sealing station; also with Nitrogen flushing into the auger hopper;
7. With Servo driven auger filling system, which ensures the pretty good filling accuracy.
8. With mixing motor to flat the powder level and ensures the good filling accuracy.
9. With two kinds of lids options, die-cutting lids or rolled foil, etc..
10. With premium quality brass heat sealing module, the sealing effect is pretty good.
11. With automatic servo driven swing arm to output the finished k-cups.
12. With optional weight checking system and flavor liquid injection system
13. The capsule without lids or not filling capsule will be rejected out automatically.

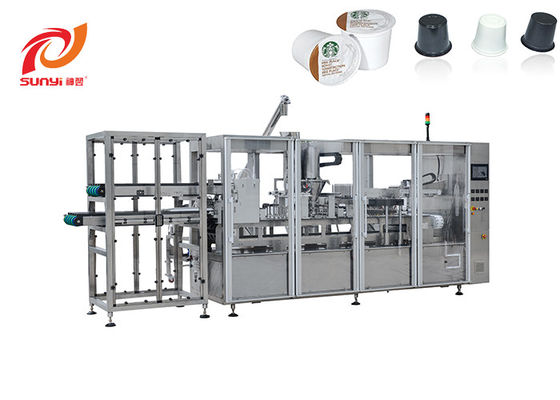

4 Lanes K-cup Coffee Capsules Filling Sealing Machine photos for reference
