|Product Name:||Coffee Capsules Filling Sealing Packaging Machine||Capacity:||3000pcs/hour|
|Filling Accuracy:||±0.15g||Power Supply:||AC220V 1P / AC380V 3P 50/60Hz|
|Hopper Volume:||15L||Control System:||Electric-pneumatic|
|Nitrogen Flushing:||Optional||After-sales Service Provided:||Engineers Available To Service Machinery Overseas,Video Technical Support,Online Support,No Overseas Service Provided,Free Spare Parts|
3000pcs/h coffee pod sealer machine,
0.6MPa capsule packing machine,
0.6MPa coffee pod sealer machine

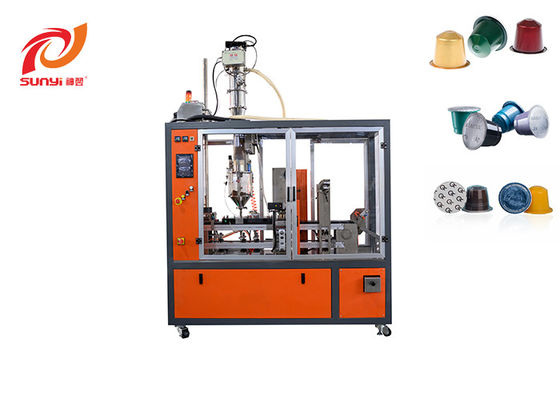

Single Lane Automatic Coffee Capsules Filling Sealing Packaging Machine
for Compatible Nespresso Lavazza K-cup
Sunyi Machinery is the China top 1 professional manufacturer of the compatible coffee capsules filling sealing machine for over 10 years.
We can do almost all the popular coffee capsules in the market, such as compatible Nespresso, K-cup, K-shot, Lavazza Blue, Lavazza A Modo Mio, Dolce Gusto, etc...
This single lane machine is Sunyi the latest new machine in 2020. It's composed with concise structure, popular electronic pneumatic compoments and food grade stainless steel all material contact parts. With advanced technology, this machine can be at 3,000caps per hour under stable working condition. This is an entry level coffee capsule filling and sealing machine, aiming to help more small coffee companies grow greater.
If you have much more production capacity needs, we Sunyi Machinery can also supply you the best filling sealing packaging solutions.
For any further more questions, welcome to contact me directly.
1. This machine can be suitable for different powdery products, such as ground coffee, powdered tea, milk powder, foods ingredient, etc..
2. With vertical coffee capsules feeding station, to drop the capsules into the modules automatically. No cups, then No filling, No Sealing
3. With UV sterilization lamp to make the production meet FDA standard.
4. With Anti-static device to remove statics that coming with the fresh coffee powder.
5. With automatic vacuum coffee powder feeding device to feed the coffee powder from the storage tank to the machine hopper.
6. With Nitrogen flushing function from the capsule loading staiton to the sealing station; also with Nitrogen flushing into the auger hopper;
7. With Servo motor driving the auger filling system, which can ensure the filling accuracy being ±0.15g
8. With mixing motor to flat the powder level inside the auger hopper.
9. With rolled foil punching and forming lids and thermo sealing the lids or die-cutting aluminum lids.
10. With premium quality brass heat sealing module, the sealing effect is pretty good.
11. With automatic swing arm to pickup the ready capsules out.
12. With optional weight checking system and flavor liquid injection system
13. The capsule without lids or not filling capsule will be rejected out automatically.
Machine photos for reference
1. Remote Controller: if any program system errors when running the machine at customer's plant, we can modify the program at our factory remotely.
2. Flavor adding device:This is a small liquid pump, we can drip a little bit in the capsules, which can change the taste of coffee easily.
3. Auger Powder Feeder: this is used to convey the coffee powder to the small auger hopper. Or, we can use vacuum powder feeder.
4. Automatic sorter machine: this machine is used to sorting and feeding the empty capsules automatically.
SUNYI Company Glimpse
Ending is not the end!
If any questions, pls. don't hesitate to let me know.
Contact Person: Mike
